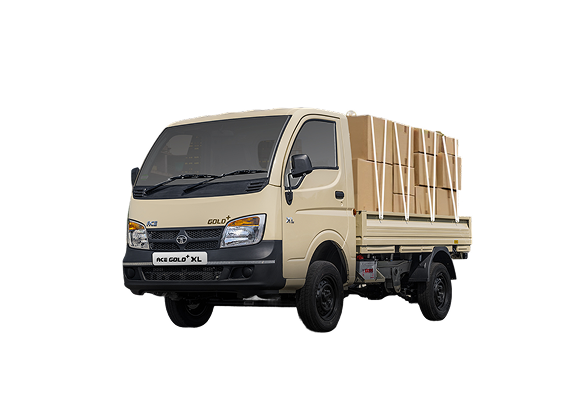

    Gold_xl_1x1 1.png
  • Image
    Gold_xl_1x1 2.png
  • Image

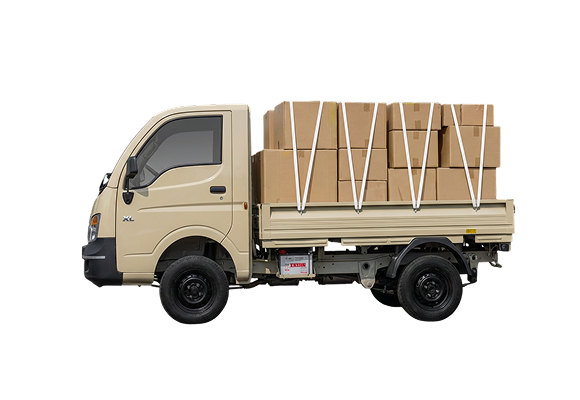

    Gold_xl_1x1 3.png

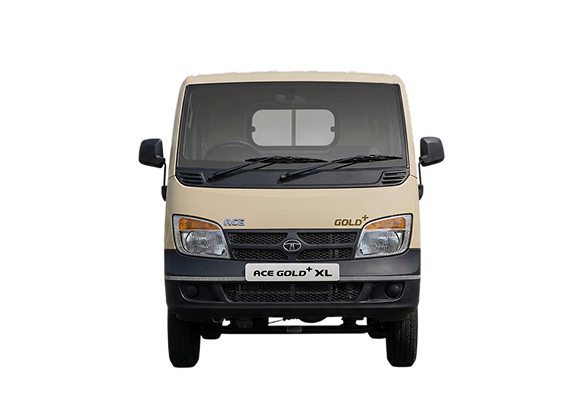

Ace Gold Plus XL

Earn More with Bigger Load, Fewer Trips and Lower Running Costs

Bigger Body. More Load. The Same Trusted TATA Ace. Now in XL

1975

GVW

NA

Fuel Tank Capacity

NA

Engine

Earn More with Better Mileage and Better Pickup

More goods per trip means fewer runs and higher earning potential. The XL upgrades are built to increase productivity on daily routes—so every trip counts more.

  1. No Need of Diesel Exhaust Fluid (DEF) reduces operating cost intensity.

  2. Elimination of DEF also eliminates the need of Manual Regeneration and improves fuel efficiency—delivering hassle-free driving and greater peace of mind.

8'2" (2520 mm external) longer deck length  lets you carry more volume per trip—so you can carry more, trip less

1000 kg higher (11% higher) rated payload means more goods per journey—making every run more profitable for the working owner-operator

13" bigger tyres (155 R13 LT) deliver better grip and stability under load

174 mm higher ground clearance helps tackle speed breakers and rough patches with confidence.

Every XL claim is backed by Ace legacy and proof-led capability—20+ years of trust, 25 lakh+ vehicles sold, plus strong service reach and resale confidence

Engine
Power 16.2 kW (22PS) @ 3600 rpm
Torque 55 Nm@ 2000 – 2600 rpm
Clutch and Transmission
Gear Box Type 5 Speed
Steering Mechanical
Max Speed 62 (Power Mode)
Brakes
Suspension Front Parabolic leaf spring
Suspension Rear Semi - Elliptical leaf spring
Wheels and Tyres
Tyres 155 R13 LT 8PR (Tubeless Tyres)
Vehicle Dimensions (mm)
Wheelbase 2250
Ground Clearance 174
Load Body 2520 (8 ft 2 inch) X 1490 (4 Ft 10 inch) X 300 (1 Ft) 2450 (8 ft) X 1430 (4 Ft 8 inch) X 300 (1 Ft)
Weight (kg)
GVW 1975
Payload 1000
Seating & Warranty
Seats D+1
