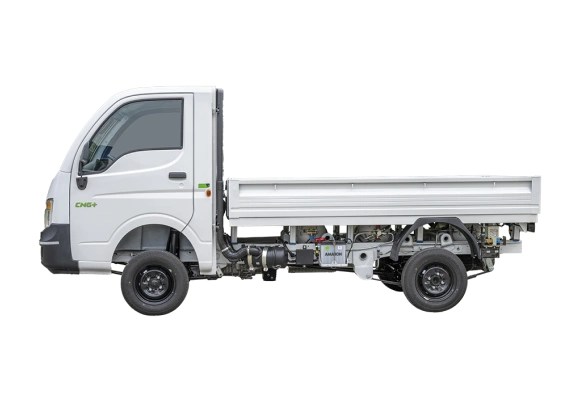

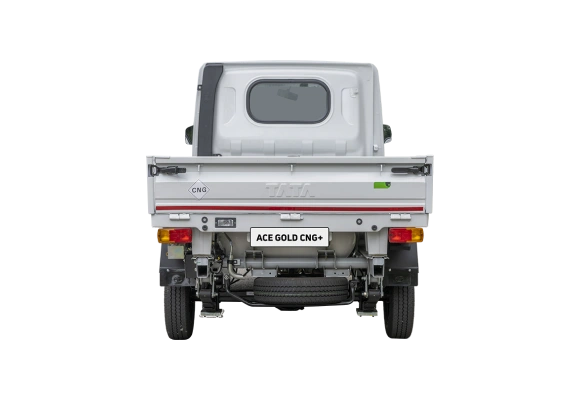

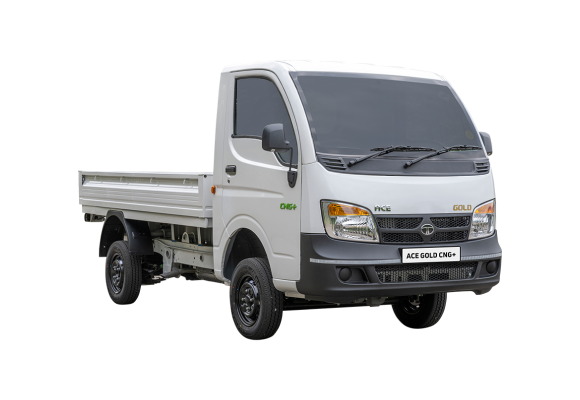

Tata Ace Gold CNG Plus

Ace Gold CNG Plus BS6 Phase 2 offers high power & pick up with a 2 cylinder 694CC offering 19.4 kW (26 HP) max power and 51 Nm max torque. It comes with a best in segment load body deck offering 2520 mm (8.2 feet) long load body and a segment leading Leaf spring suspension known for its high loadability.

1630

GWV

105L (35L + 35L + 35 ... 105L (35L + 35L + 35L)

Fuel Tank Capacity

2 cylinder 694CC

Engine

Download Brochure

Earn More with Better Mileage and Better Pickup

Bigger Head Lamp with 5X Improved illumination intensity
Improved Focus Range for safe night and early morning driving

New steering box with 35% reduced steering effort

Flat seat for in Cabin driver resting.
Ergonomic seats with Head Rest and extra rear ward travel for ergonomic driving.
Pendular APM module for better driving experience

A 2 cylinder 694cc engine offering higher Power & Pick up
Max Power of 19.4 kW
Max Torque of 51 Nm

Ace Gold CNG+ comes with a 18 Kg CNG fuel tank capacity providing a trip range of upto 400 Kms in single filling.

2520 mm (8.2 feet) long load body
Leaf spring suspension for high loading

Applications

Parcel & Courier

LPG Cylinders

E-Commerce

Municipal application

FMCG

Engine

Type	4 stroke, Water Cooled, Multipoint Gas Injection, Dedicated CNG Engine
Power	19.4 kW @4000 (+/-100) rpm (26 HP)
Torque	51 Nm @ 2000 - 2500 rpm
Gradeability	28%

Clutch and Transmission

Gear Box Type	GBS 65- 5/5.6
Steering	Manual. 27.9-30.4(variable ratio); 380mm dia
Max Speed	70 kmph

Brakes

Brakes	Front - Disc brakes; Rear - Drum brakes
Regenerative Brake	-
Suspension Front	Rigid Axle with Parabolic Leaf Spring
Suspension Rear	Live Axle with Semi-elliptical Leaf Spring
