Small Commercial Vehicles
-
-
-
-
-

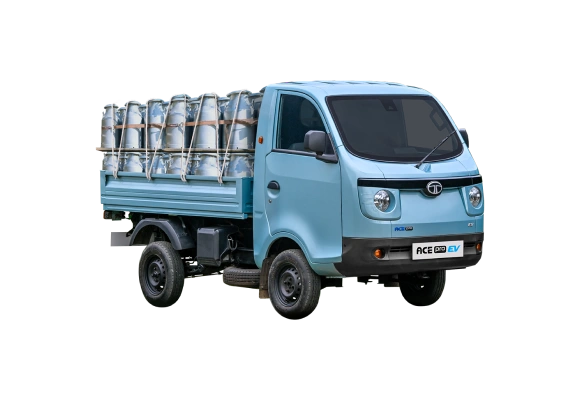

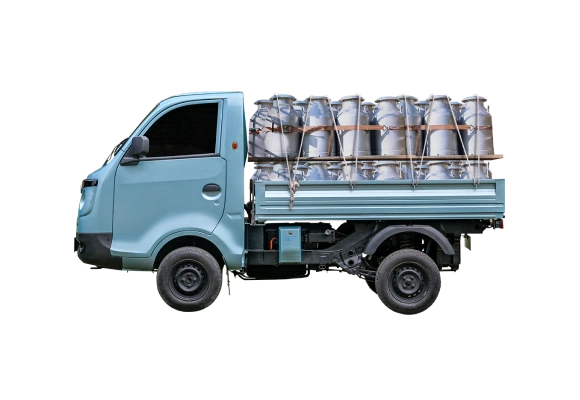

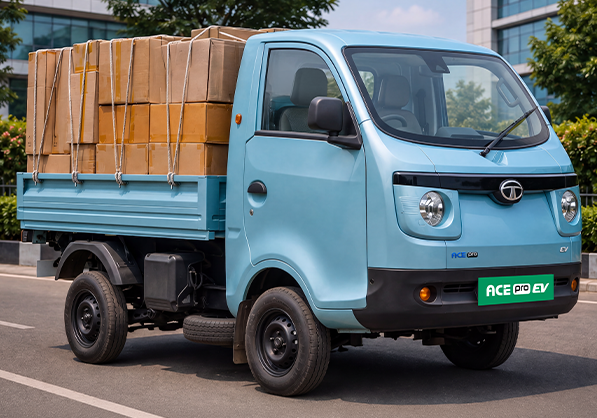

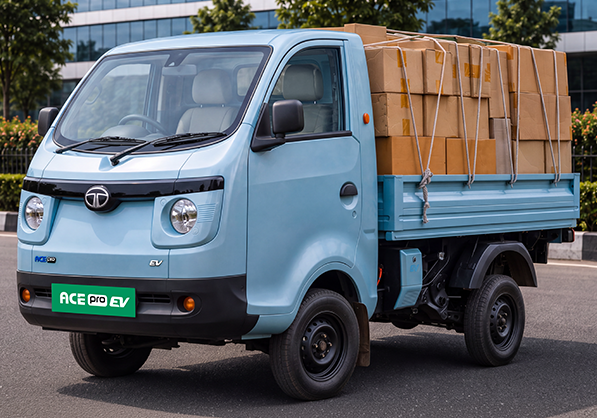

Ace Pro EV
Introducing the Ace Pro, a solution to profitable last-mile delivery. Built on a unique modular architecture, it maximises customers' daily delivery capacity while minimising operational costs, offering a high earning potential.
155 km (Certified)
Range per Charge
"175000 Kms / 8 years* "
Battery Warranty
750kg
Payload
Engine
| Type | PMSM (Permanent Magnet Synchronous Motor) |
| Power | 29 kW @ 3500 RPM |
| Torque | 104 Nm @ 0-2500 RPM |
| Gradeability | 21% |
Clutch and Transmission
| Gear Box Type | E-Transaxle with drive shafts |
| Steering | Mechanical steering (Rack & Pinion) |
| Max Speed | 50 kmph |
Brakes
| Brakes | Front - Disc brakes; Rear - Drum Brakes |
| Suspension Front | Independent, McPherson strut |
| Suspension Rear | Semi trailing arm with coil spring & hydraulic damper |
Wheels and Tyres
| Tyres | 145R12 |
Vehicle Dimensions (mm)
| Length | 3560 mm |
| Width | 1497 mm |
| Height | 1820 mm (Unladen) |
| Wheelbase | 1800 mm |
| Ground Clearance | 170 (Minimum in Laden condition) |
| Min TCR | 3750 mm |
Weight (kg)
| GVW | 1610kg |
| Payload | 750kg |
Battery
| Battery Chemistry | Lithium Ion Iron phosphate (LFP) |
| Battery Energy (kWh) | 14.4 kWh |
| Certified Range | 155 km (Certified) |
| Slow Charging time | Slow Charging (5 to 100%): < 6 hours |
Performance
| Gradeability | 21% |
Seating & Warranty
| Seats | D+1 |
| Warranty | 1 25 000 kms / 3 years*** (whichever is earlier) |
| Battery Warranty | "175000 Kms / 8 years* " |
