Small Commercial Vehicles
  • Image
    ace-pro-petrol
  • Image
  • Image
    ace-pro-petrol
  • Image
    ace-pro-petrol-2
  • Image
    ace-pro-petrol-3

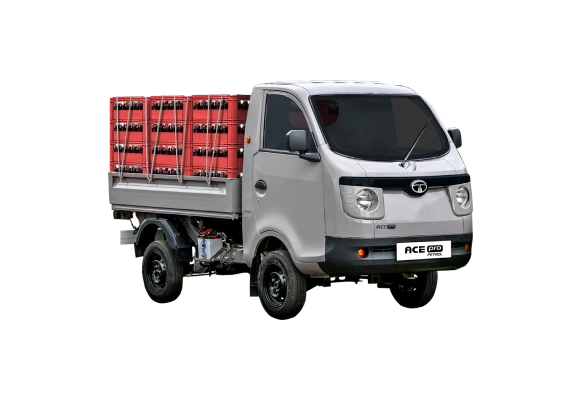

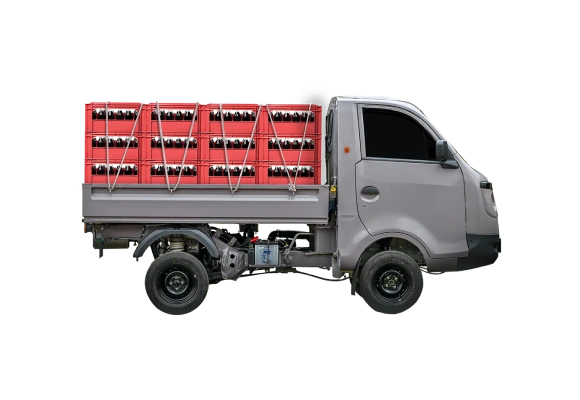

Ace Pro Petrol

The Ace Pro Petrol delivers powerful performance with its 694cc water-cooled engine, making it a dependable partner for urban last-mile deliveries. Its compact build and proven efficiency help maximize turnaround time.

750 kg

Payload

694 cc

Engine

2046 mm (6'8'')

Load Body Length

Engine
Power 22 kW (30 hp) @4000 rpm
Torque 55 Nm @ 1750-2750 rpm
Clutch and Transmission
Gear Box Type TA-59 with drive shafts
Steering Mechanical steering (Rack & Pinion)
Max Speed 55 km/h
Brakes
Brakes Front - Disc brakes; Rear - Drum Brakes
Suspension Front Independent, McPherson strut
Suspension Rear Semi trailing arm with coil spring & hydraulic damper
Wheels and Tyres
Tyres 145R12
Vehicle Dimensions (mm)
Length 3560 mm
Width 1497 mm
Height 1820 mm (Unladen)
Wheelbase 1800 mm
Ground Clearance 170 mm (Minimum in Laden condition)
Min TCR 3750 mm
Weight (kg)
GVW 1460 kg
Payload 750 kg
Seating & Warranty
Seats D+1
Warranty 72000 kms or 2 years** (whichever is earlier)

Applications
