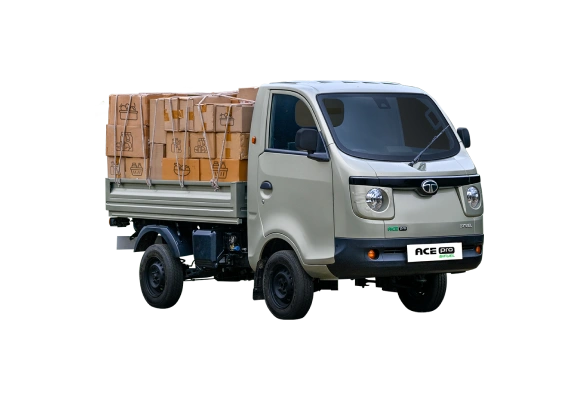

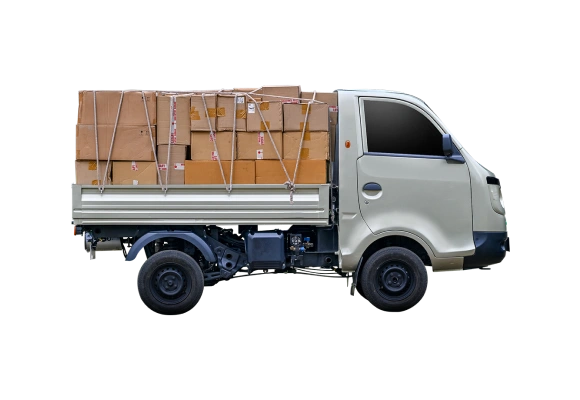

Ace Pro Bi-fuel

The Ace Pro Bi-fuel is the ideal partner for cost-effective last-mile deliveries, combining the economic advantage of CNG with the reliability of petrol. This mini truck can efficiently handle high-volume goods in a single trip, maximizing customer’s earnings per route.

750 kg

Payload

2046 mm (6'8'')

Load Body Length

CNG : 45 Litres (1 cylinder) + Petrol : 5 L

Fuel Tank Capacity

Engine
Power 19 kW (25 hp) @4000 rpm (CNG mode)
Torque 51 Nm @ 2 500 rpm (CNG Mode)
Clutch and Transmission
Gear Box Type TA-59 with drive shafts
Steering Mechanical steering (Rack & Pinion)
Max Speed 55 kmph
Brakes
Brakes Front - Disc brakes; Rear - Drum Brakes
Suspension Front Independent, McPherson strut
Suspension Rear Semi trailing arm with coil spring & hydraulic damper
Wheels and Tyres
Tyres 145R12
Vehicle Dimensions (mm)
Length 3560 mm
Width 1497 mm
Height 1820 mm (Unladen)
Wheelbase 1800 mm
Ground Clearance 170 (Minimum in Laden condition)
Min TCR 3750 mm
Weight (kg)
GVW 1535 kg
Payload 750 kg
Seating & Warranty
Seats Driver + 1
Warranty 72000 kms or 2 years** (whichever is earlier)
