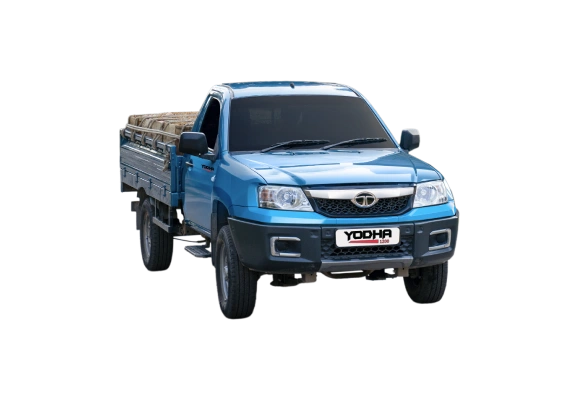

Tata Yodha 1200

Tata Yodha is identified among the target audience as a muscular, powerful and robust pickup vehicle, equipped to carry higher payload and pull off faster turn-around owing to the powerful engine and strong aggregates. The brand resonates with the target audience’s desires for an ideal pickup vehicle – strong and agile, an anthropomorphism of a warrior.

2950

GWV

52L Polymer Tank

Fuel Tank Capacity

74.8 kW (100 HP) ... 74.8 kW (100 HP) @ 3750 r/min

Engine

Download Brochure

Earn More with Better Mileage and Better Pickup

Tata Yodha range of pickups are equipped with most powerful engine in the segment, capable of generating 74.8 kW power and delivery 250 Nm torque, and hence are capable of carrying higher load and completing more number of trips on account of faster turn-around.

Rigid semi-elliptical leaf spring suspension with 6 leaves on front and 9 leaves on rear side, and 4 mm thick hydroformed chassis frame, makes the vehicle suitable for carrying all kind of load in volumes and masses.
16” big tyres enhances stability in high load condition and high speed operation.

Eco mode and gear shift advisor for better fuel economy.

Lubricated for life (LFL) aggregates requires no greasing throughout the vehicle life.
Engine oil change interval of 20,000 KMs – low vehicle service cost.
LNT technology with cDPF – no DEF filling required.

Stone-guard on front end for enhanced safety.
Sturdy 3-piece metallic bumper for ease of repairs and serviceability.
Anti-roll bar on front side for stability on gradients and unleveled roads.

Superior driving ergonomics – adjustable power steering, reclining seat and ergonomic pedal position, for comfortable driving experience through long trips.
Flat laydown reclining seats with head rest.
High utility compartments in the cabin – lockable glovebox, magazine/bottle holder.
Advanced features for additional convenience – fast mobile charger, RPAS and sliding window on cabin rear wall.

Applications

Agri products

Parcel & Courier

LPG Cylinders

Tent house

White Goods

FMCG

Bakery

Water bottles

Engine

Type	TATA 2.2L VARICOR Intercooled Turbocharged BS6 DI engine
Power	-
Torque	250 Nm@1000 -2500 r/min
Gradeability	40%

Clutch and Transmission

Gear Box Type	G76-5/4.49 mark 2, Synchromesh 5F+1R
Steering	Power Steering
Max Speed	-

Brakes

Brakes	Hydraulic, twin pot Disc Brake
Regenerative Brake	-
Suspension Front	Rigid suspension with semi-elliptical leaf springs - 6 leaves
Suspension Rear	Innovative Two stage Semi elliptical leaf springs -9 leaves
