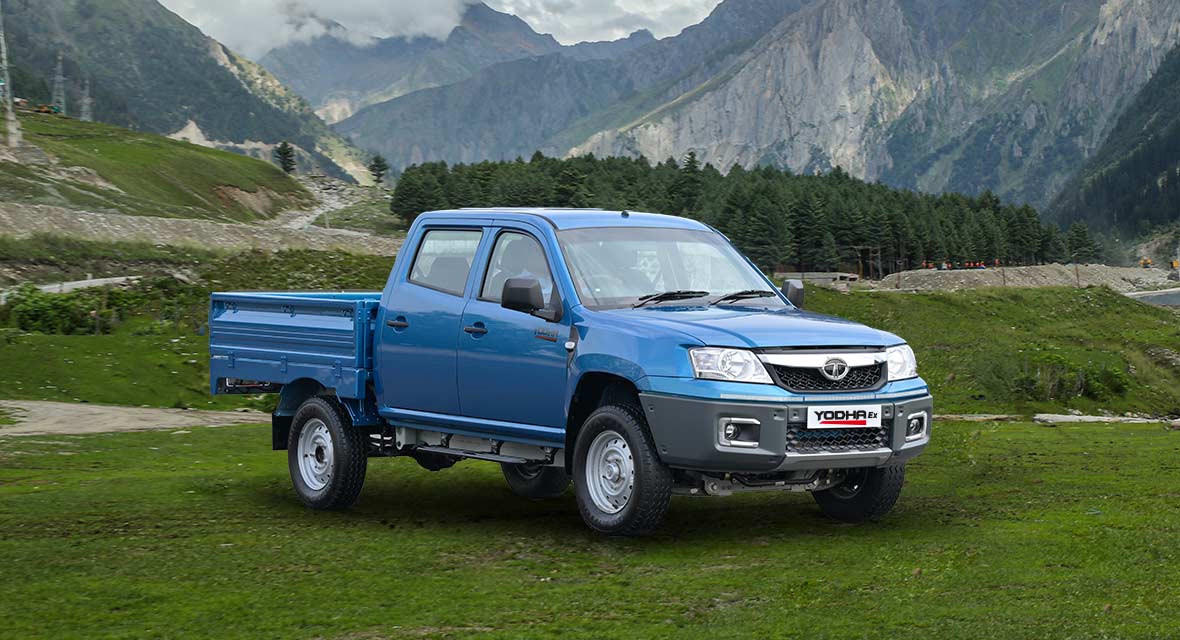

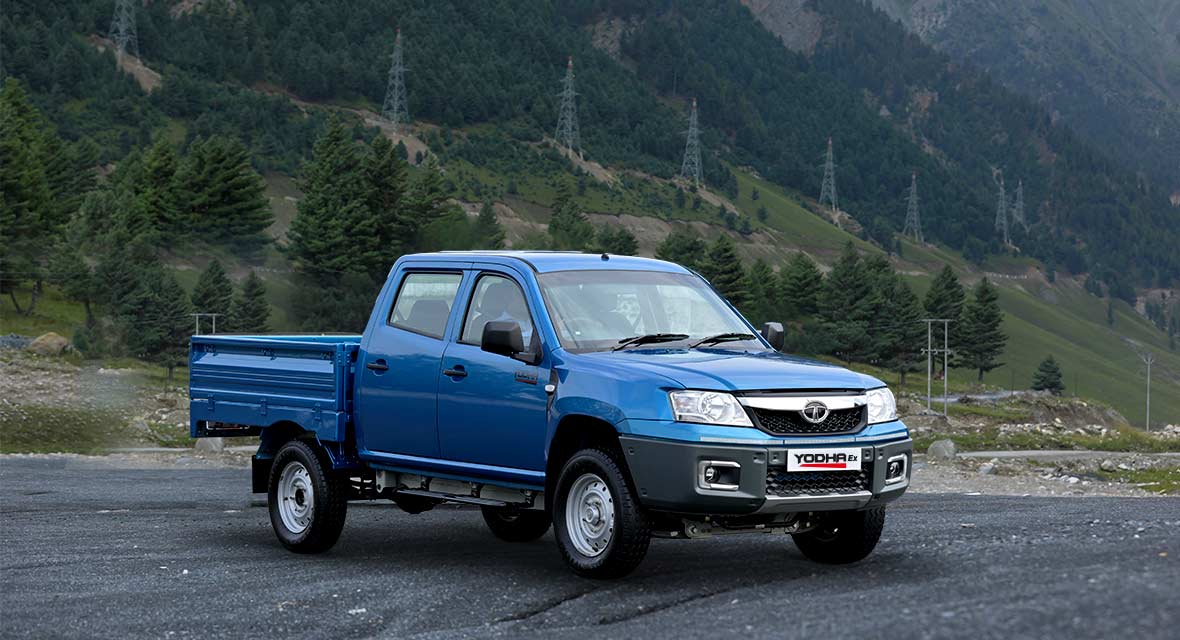

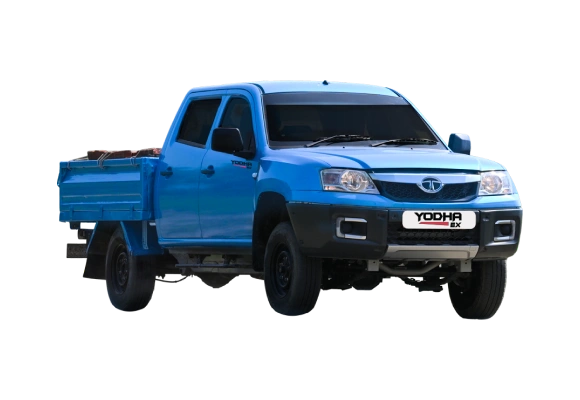

Tata Yodha Ex Crew Cab
Become unstoppable in your business as no road is impossible for the all new Tata Yodha Ex, which comes equipped with Excellent features that take profitability to the next level. The Turbocharged DI Engine produces 100 kW power and 250 Nm torque, enabling effortlessly faster deliveries.
2990
GWV
NA
Fuel Tank Capacity
NA
Engine
Applications
Logistics
Parcel & Courier
Lifestyle
Municipal application
Bakery
Tea leaves
Industrial Goods
Engine
| Type | 2.2 litre4-cylinder BS6 DI engine |
| Power | 73.6 kW @ 3750 r/min |
| Torque | 250 Nm @ 1000-2500 r/min |
| Gradeability | 40% |
Clutch and Transmission
| Gear Box Type | GBS – 76-5/4.49 mark 2, Synchromesh 5F+ 1R |
| Steering | Power Steering |
| Max Speed | - |
Brakes
| Brakes | Hydraulic, twin pot disc brake |
| Regenerative Brake | - |
| Suspension Front | Double wishbone type suspension with independent coil spring |
| Suspension Rear | Parabolic Leaf Springs |
Wheels and Tyres
| Tyres | 215/75 R 16 LT |
Vehicle Dimensions (mm)
| Length | 5350 mm |
| Width | 1860 mm |
| Height | 1810 mm |
| Wheelbase | 3150 mm |
| Front Track | - |
| Rear Track | - |
| Ground Clearance | 210 mm |
| Min TCR | - |
Weight (kg)
| GVW | 2990 |
| Payload | 1100 |
Battery
| Battery Chemistry | - |
| Battery Energy (kWh) | - |
| IP Rating | - |
| Certified Range | - |
| Slow Charging time | - |
| Fast Charging time | - |
Performance
| Gradability | 40% |
Seating & Warranty

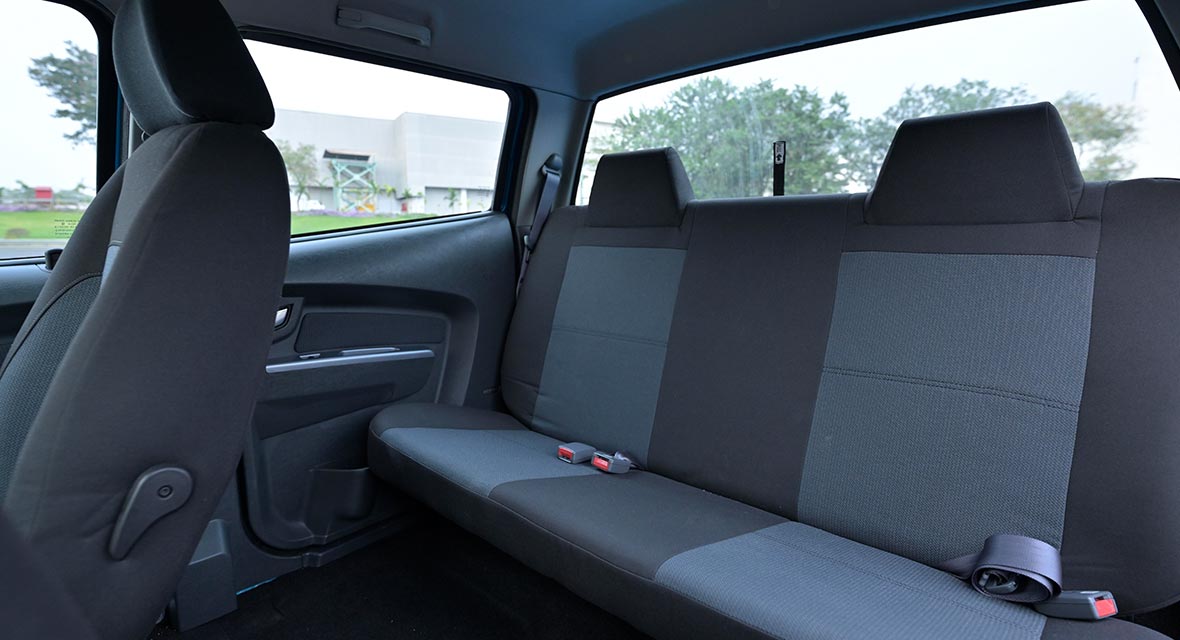

| Seats | D+4 |
| Warranty | 3 Years/3 Lakh km |
| Battery Warranty | - |
