Small Commercial Vehicles
-

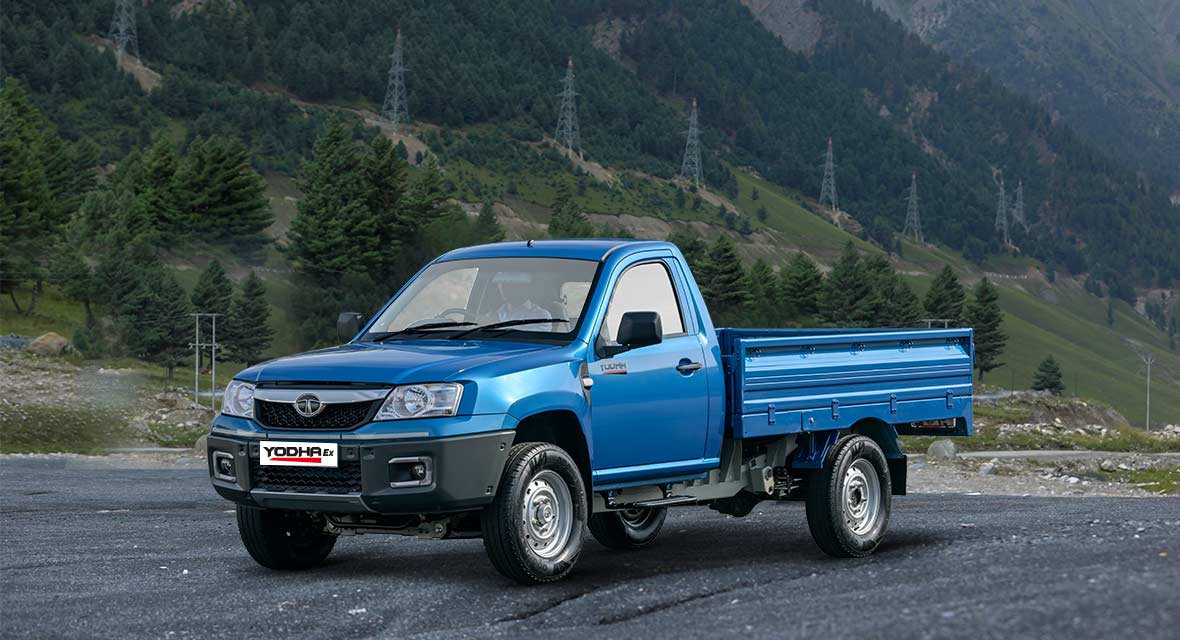

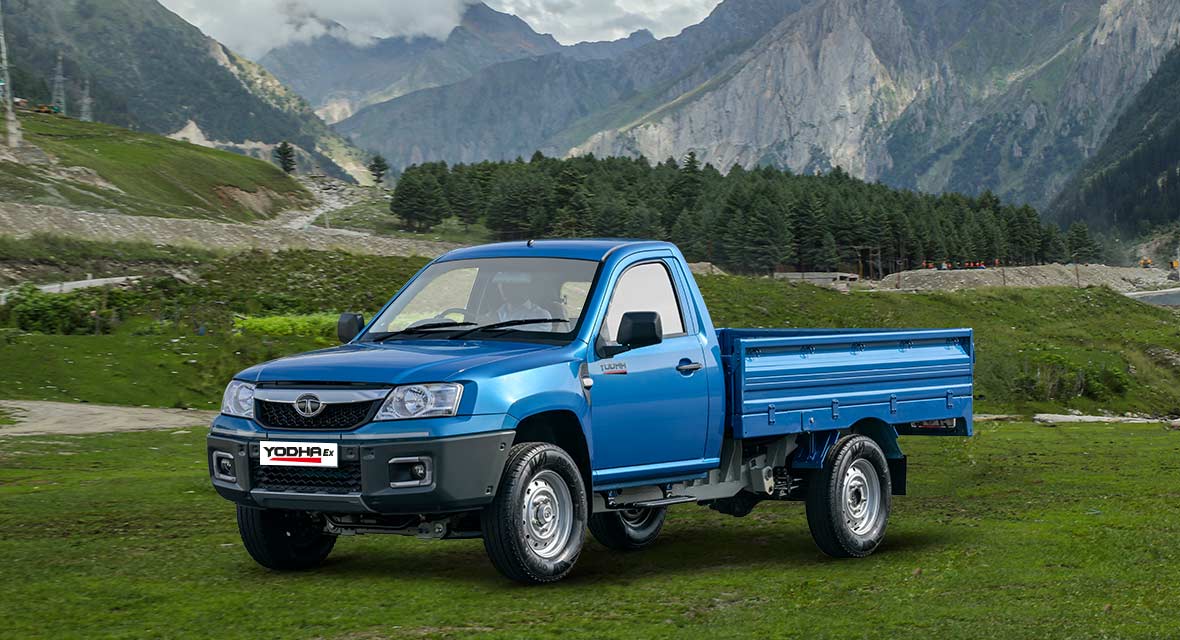

Tata Yodha Ex Single Cab
Become unstoppable in your business as no road is impossible for the all new Tata Yodha Ex, which comes equipped with Excellent features that take profitability to the next level. The Turbocharged DI Engine produces 100 kW power and 250 Nm torque, enabling effortlessly faster deliveries.
2990
GVW
NA
Fuel Tank Capacity
NA
Engine

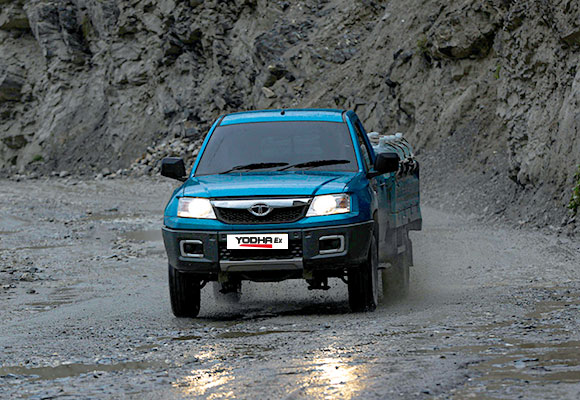

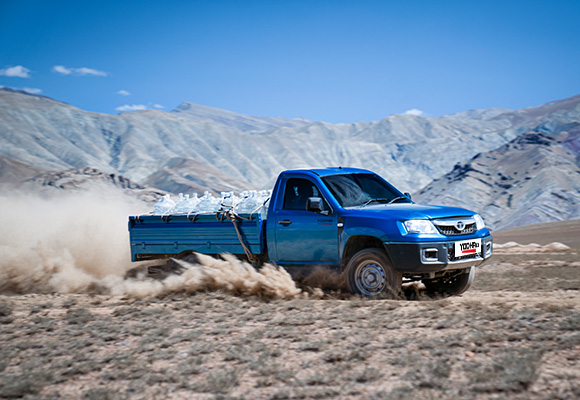

Earn More with Better Mileage and Better Pickup
on every terrain, in every application
- Powerful & Proven Turbocharged DI Engine - Output: 74.8 kW (100 HP) and Torque: 250 Nm.
- 16” Big Tyres(215/75 R 16 Radial) For optimum traction & load bearing
- Big 250mm diaclutch plate Self-adjusting hydraulic clutch assembly
- Low 6.25m turning radiusFor precise and smooth driveability
- 210mm high Ground ClearanceFor easy navigation through rough terrains

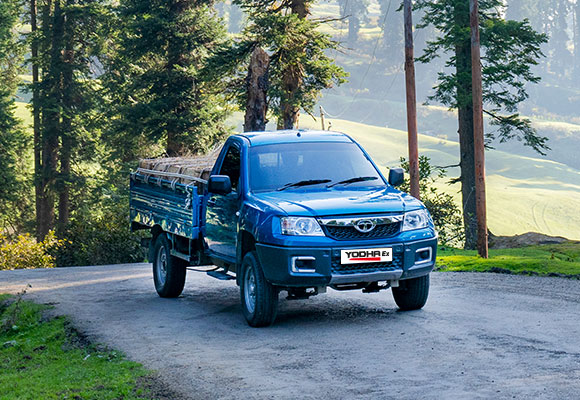

With wide flatbed cargo deck
- Bigger Load Body For Higher Load Bearing
- Load body dimension: (2650 mm x 1850 mm)
- Loading space: 48 SqFt (4.5 m2)
- Superior Load Bearing Ability
- Payload: 1205Kg
- GVW: 2990Kg
- Optimized dimensions for superior on-road stability
- Wheelbase: 3300mm
- Overall length: 5350mm
- Overall width: 1860mm
for heavy duty vehicle operation
- 4mm Thick Chassis Frame
- With additional reinforcement on belly for enhanced sturdiness
- Vacuum Assisted Hydraulic Brake
- With twin pot calipers, for efficient braking
- Rigid Type
- Rear Suspension - With Parabolic leaf springs for superior load bearing ability.
- Double Wishbone Type
- Front Suspension - With independent coil spring over shock absorber
improving driver productivity

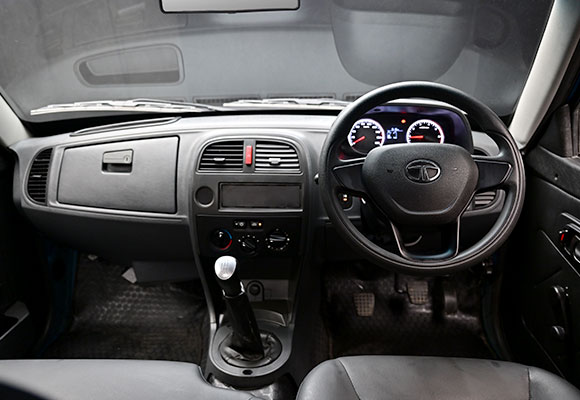

- Seamless driving experience
- Hydraulic power steering for smooth driving experience.
- Ergonomic gear shift lever with central power window controls
- High end interiors
- Loaded with utility spaces and high quality fitments

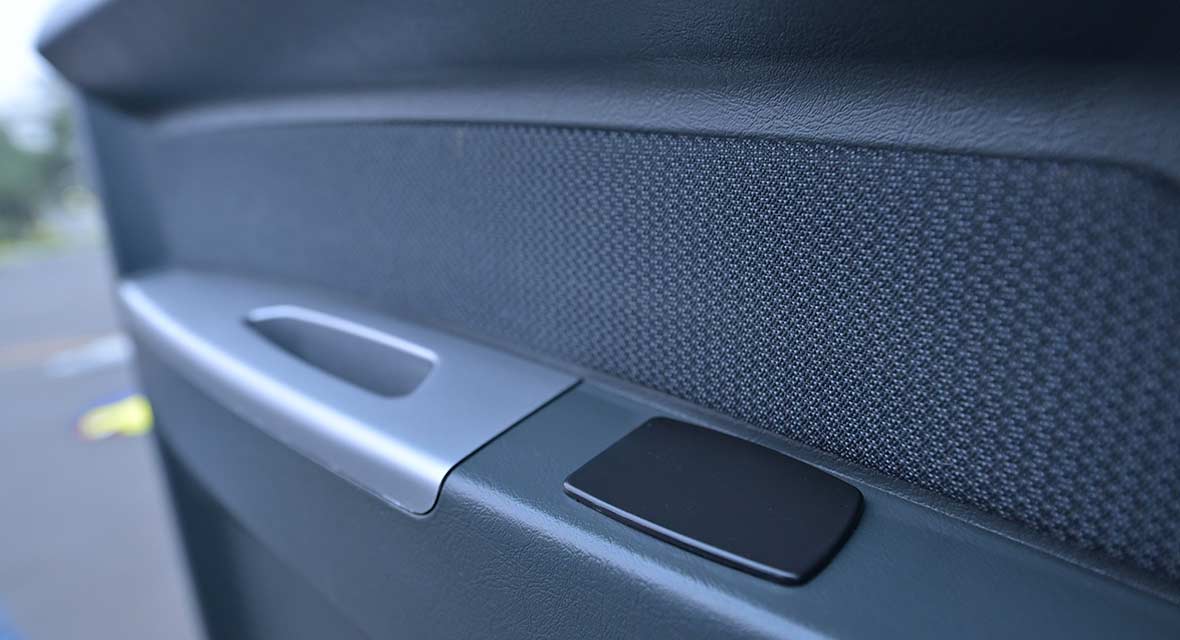

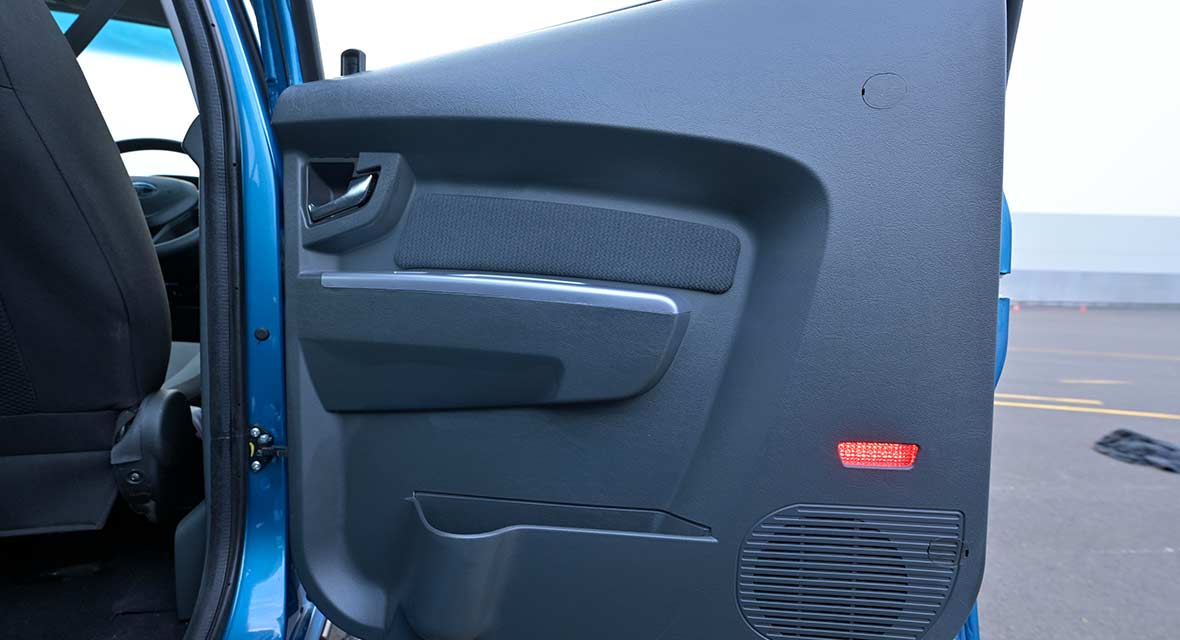

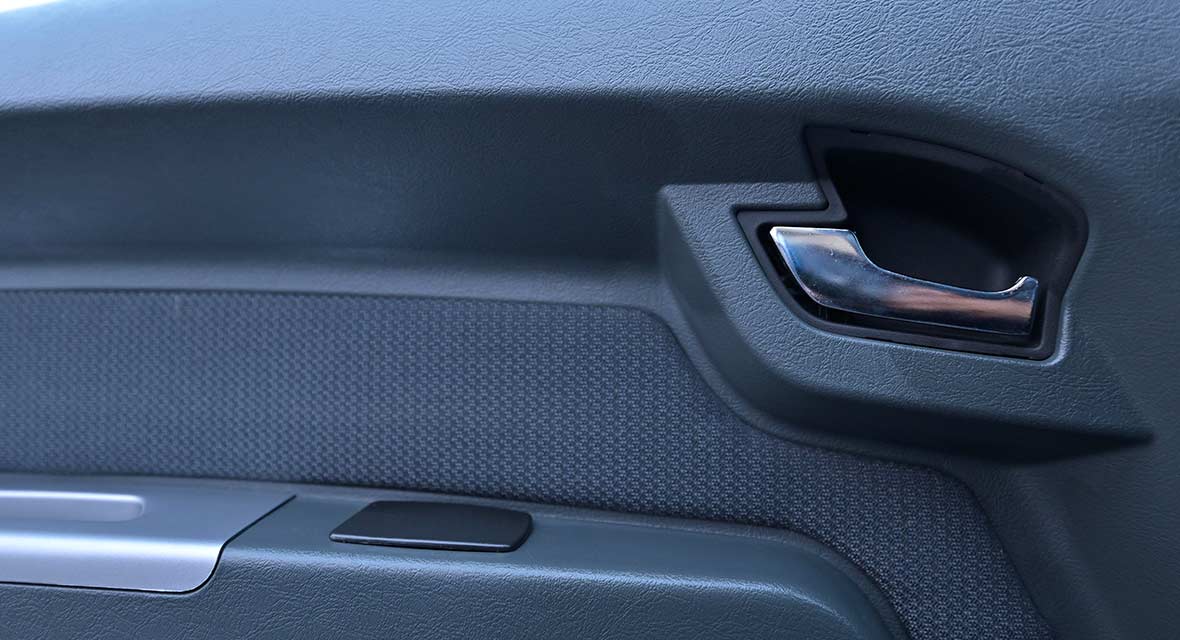

- All new door trim
- Equipped with reflex reflector and utility compartments

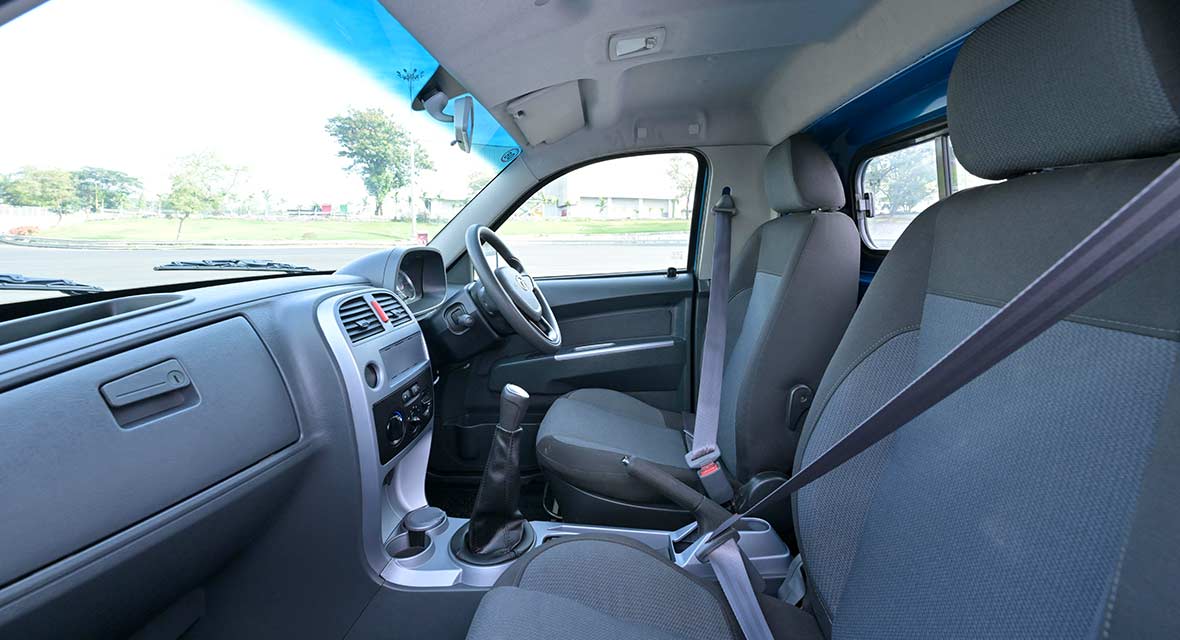

- Bucket type fabric seats
- When style meets comfort
with lowest TCO
- Best-in-class fuel economy
- Best-in-class fuel economy

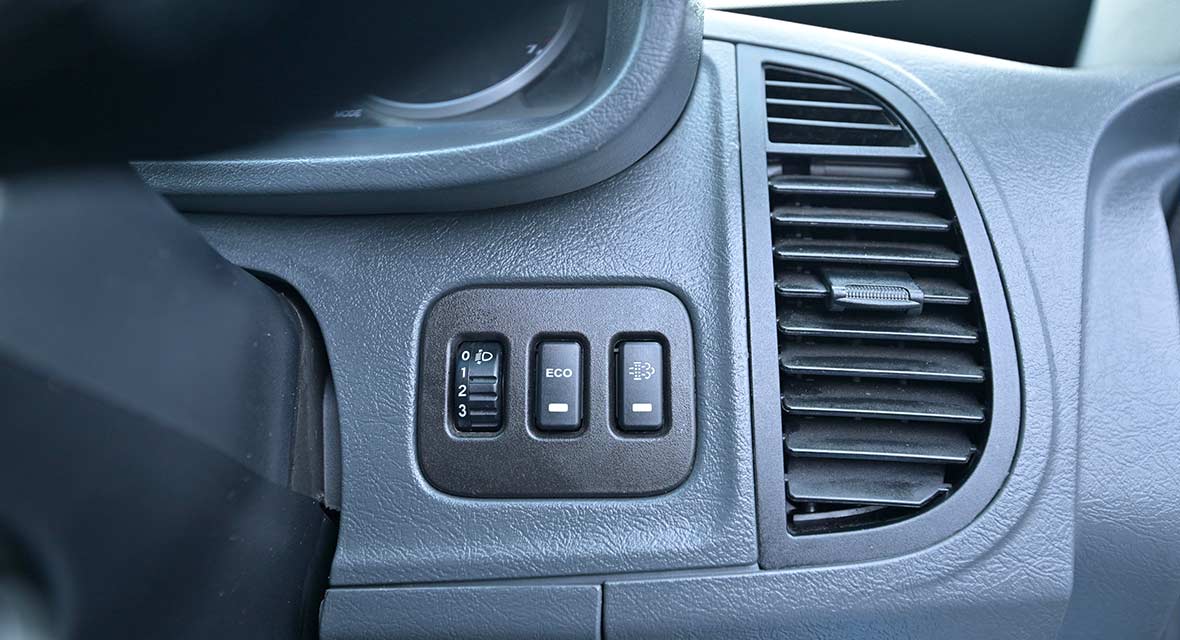

- Eco-switch and GSA for optimized vehicle operation
- High oil change interval
- 20,000 KMs for engine oil
- 80,000 KMs for gear box oil

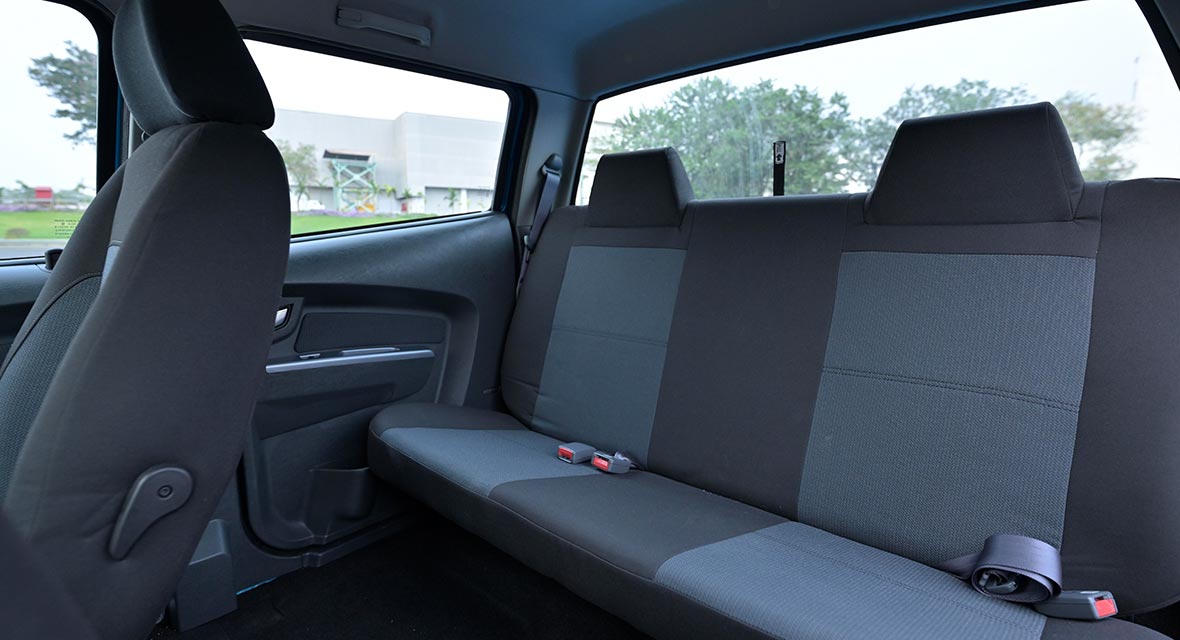

- Flat seat for in Cabin driver resting.
- Ergonomic seats with Head Rest and extra rear ward travel for ergonomic driving.
- Pendular APM module for better driving experience
Engine
| Type | 2.2 litre4-cylinder BS6 DI engine |
| Power | 73.6 kW @ 3750 r/min |
| Torque | 250 Nm @ 1000-2500 r/min |
| Gradeability | 40% |
Clutch and Transmission
| Gear Box Type | GBS – 76-5/4.49 mark 2, Synchromesh 5F+ 1R |
| Steering | Power Steering |
Brakes
| Brakes | Hydraulic, twin pot disc brake |
| Suspension Front | Double wishbone type suspension with independent coil spring |
| Suspension Rear | Parabolic Leaf Springs |
Wheels and Tyres
| Tyres | 215/75 R 16 LT |
Vehicle Dimensions (mm)
| Length | 5350 mm |
| Width | 1860 mm |
| Height | 1810 mm |
| Wheelbase | 3150 mm |
| Ground Clearance | 210 mm |
Weight (kg)
| GVW | 2990 |
| Payload | 1230 |
Performance
| Gradeability | 40% |
Seating & Warranty
| Seats | D+1 |
| Warranty | 3 Years/3 Lakh km |
