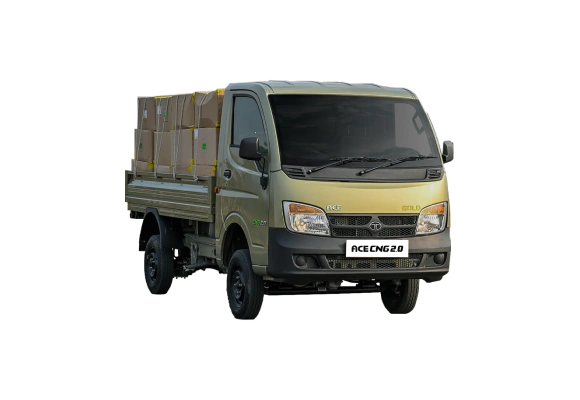

ACE CNG 2.0(Bi-Fuel)

The ACE CNG 2.0(Bi-Fuel) marks a milestone as a Bi-Fuel mini truck on the most successful and widely accepted Tata Ace platform. The ACE CNG 2.0(Bi-Fuel) or Ace Bi-Fuel offers a dual benefit of running ability on CNG and Petrol. And not just that, it can also be cold-started on CNG directly.

1790

GVW

CNG : 70L (12 KG) + PETROL 5L

Fuel Tank Capacity

694cc Bi-Fuel (CNG + Petrol) (275 MPFI BI-FUEL04)

Engine

Download Brochure

Overview
Specifications
Gallery

Earn More with Better Mileage and Better Pickup

High power: 22 kW Power for higher speed
High Pickup: 55 Nm Pickup for faster trips

Fuel Efficient 2 cylinder 694cc Bi-Fuel Engine
Gear shift advisor for higher mileage

Cabin features - Flat Seats for driver comfort
Powerful Illumination Head Lights for extra Safety
Effortless pendant type Accelerator, Brake & Clutch pedals
Seats with Head Rest & Ample leg room

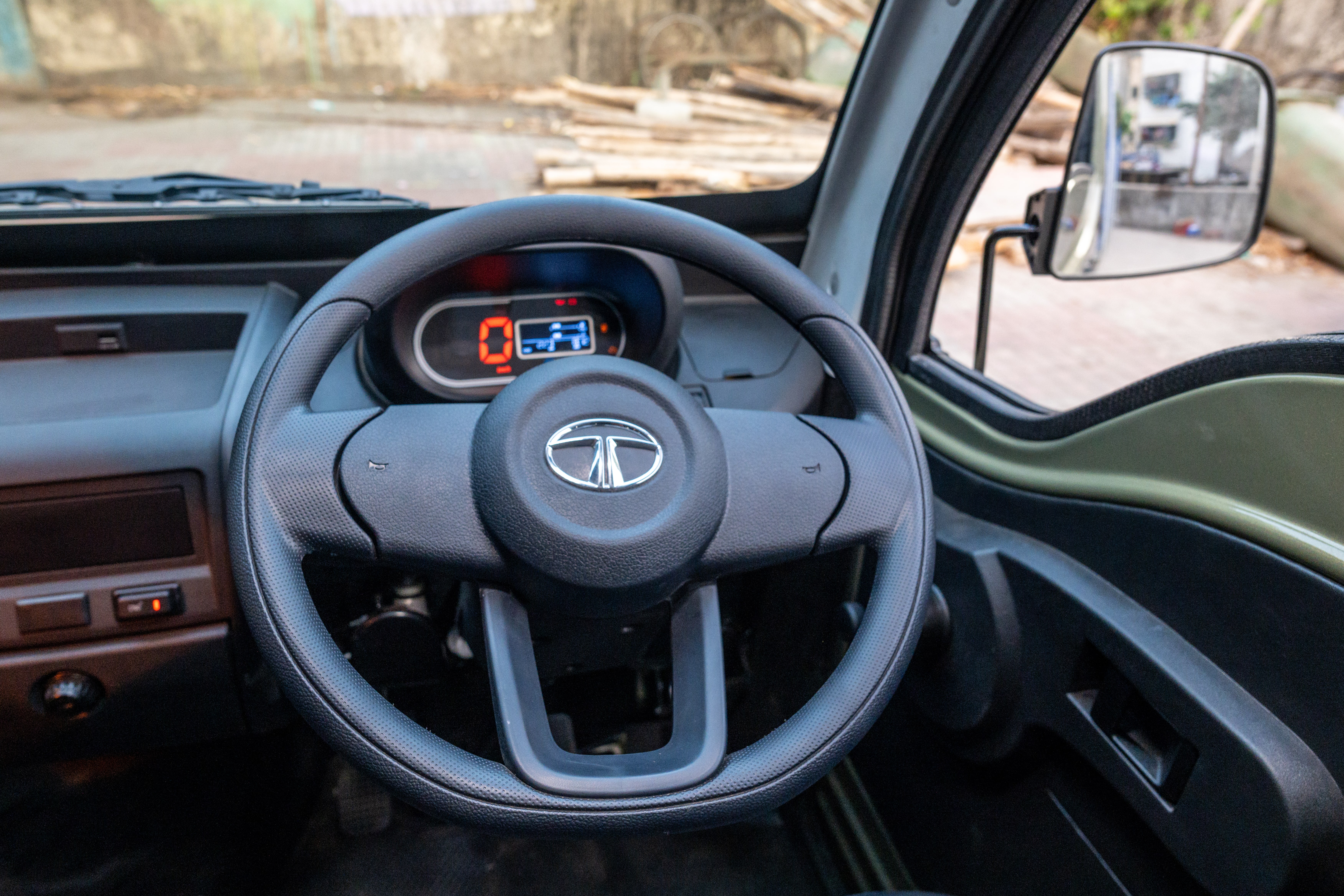

Low effort Steering Wheel

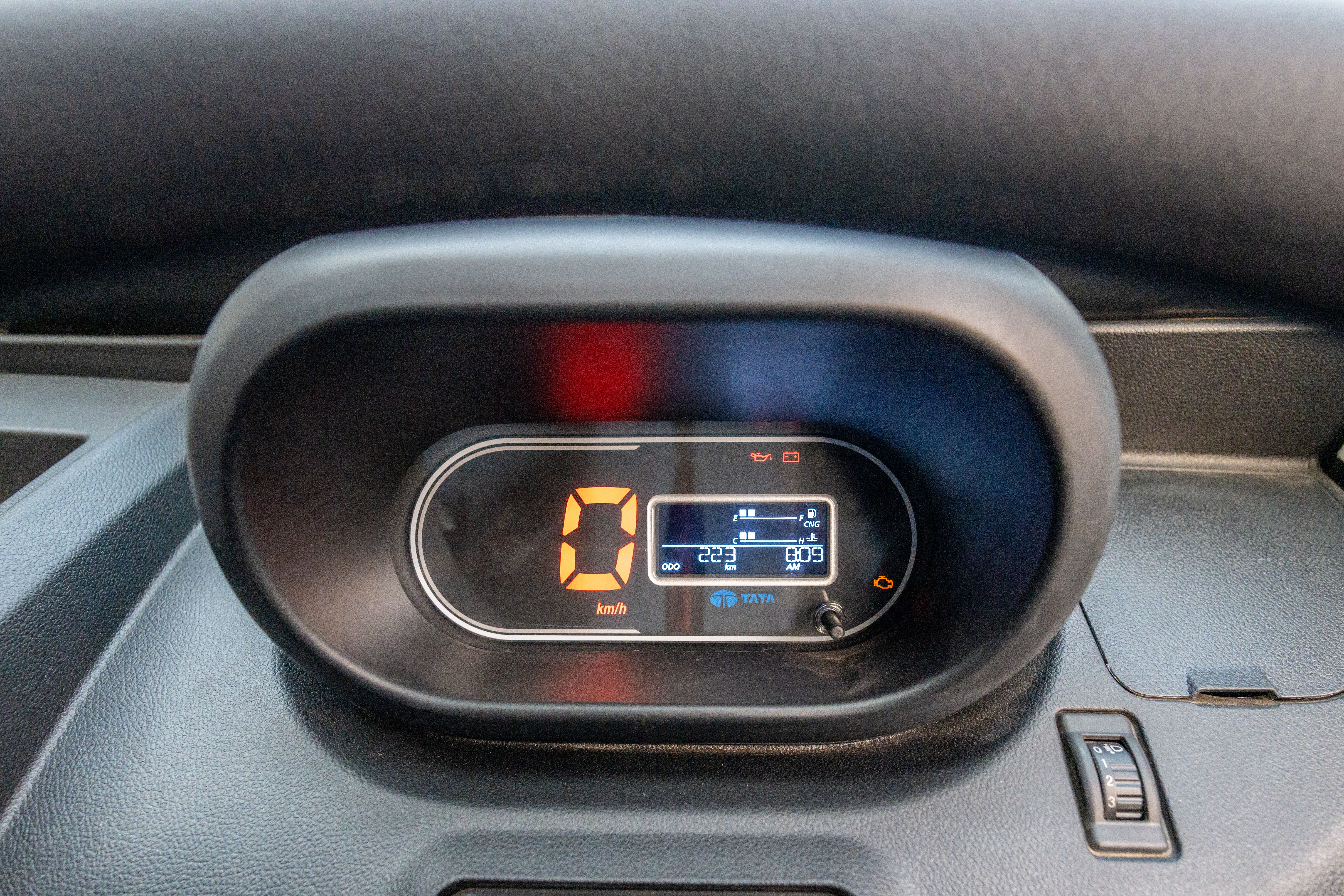

Ergonomic Gear Shift Lever & Knob Clear view Instrument Cluster

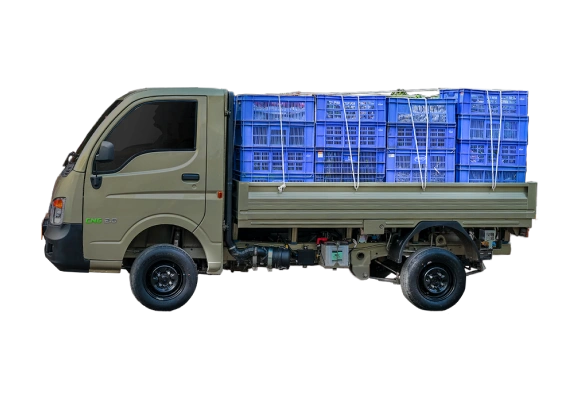

2520 mm Long Load Body
High Loadability due to Front & rear leaf spring suspension
High Payload of 800 Kg

Heavy duty chassis for long vehicle life
Leaf spring suspension for low repair cost

12 Kg CNG Cylinder +5L Petrol Fuel tank for complete peace of mind
16% more loading space with 2520 mm long load body
High Mileage with an optimized 2 cylinder engine

Engine

Type	4 stroke, Water Cooled, Multipoint Gas Injection, Dedicated CNG Engine
Power	Petrol: 30 HP ( 22 kW ) @ 4000 RPM; CNG : 25 HP ( 18.3 kW ) @ 4000 rpm
Torque	Petrol : 55 Nm @ 2500 RPM; CNG: 49-50 Nm @ 2500 rpm
Gradeability	27.5 % (CNG mode) 34.5% (Petrol Mode )

Clutch and Transmission

Gear Box Type	GBS 65- 5/6.31
Steering	Manual. 27.9-30.4(variable ratio); 380mm dia
Max Speed	70 kmph

Brakes

Brakes	Front - Disc brakes; Rear - Drum brakes
Suspension Front	Rigid Axle with Parabolic Leaf Spring
Suspension Rear	Live Axle with Semi-elliptical Leaf Spring
