Tata Ace Gold Diesel
Ace Gold Diesel BS6 Phase 2 comes with a turbocharged 2 cylinder 702 CC engine delivering 16.17 kW (22HP) max power & a max torque of 55 Nm. This enhanced power & pickup ensures 32% improved acceleration vis a vis the BS6 Phase 1 variant. The vehicle is now offered with a Direct Drive gearbox, offering superior drivability, enhanced comfort and improved fuel efficiency.
1835
GWV
30 L
Fuel Tank Capacity
702 CC
Engine
Earn More with Better Mileage and Better Pickup
- Bigger Head Lamp with 5X Improved illumination intensity
- Improved Focus Range for safe night and early morning driving
- New Direct Drive Gear Box with improved drivability, improved fuel efficiency and low NVH
- New steering box with 35% reduced steering effort
- Ergonomic seats with Head Rest and extra rear ward travel for ergonomic driving.
- Pendular APM module for better driving experience
- A 2 cylinder 702cc Turbo charged Inter cooled engine offering higher Power & Pick up
- High Power of 16.17 kW (Power Mode) and 12.5 kW (City Mode)
- High Torque of 55 Nm (Power Mode) and 40 Nm (City Mode)
- 32% improvement in acceleration (0-60 kmph)
- New Direct Drive Gear Box offering upto 5% higher Mileage
- Easily serviceable Engine
- Long Service Intervals
- 2 year/72000 km warranty

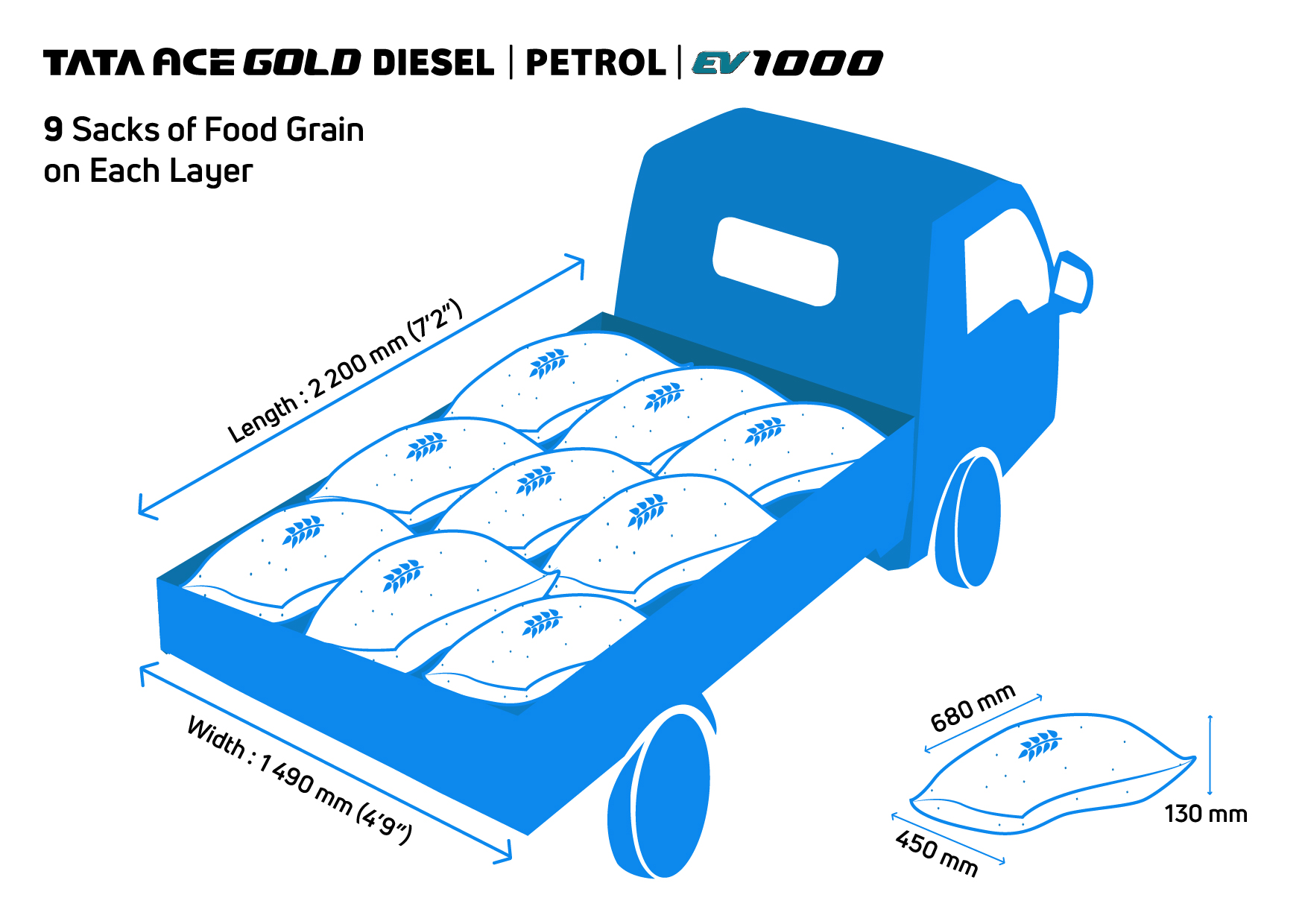

Applications
Fruits and Vegetables
Food Grains
Market Load
Fisheries
Building & Construction
Engine
| Type | 4 Stroke, Turbocharged InterCooled, Direct Injection Common Rail Diesel engine |
| Power | Power Mode : 16.17 kW (22 HP) @ 3600 +/-100 rpm City Mode : 12.5 kW at 3600 +/-100 rpm |
| Torque | Power Mode : 55 Nm @ 1800 to 2200 engine rpm; City Mode : 40 Nm @1800 to 2200 engine rpm |
| Gradeability | 35 % (Power Mode) |
Clutch and Transmission
| Gear Box Type | GBS G65-5/6.31 |
| Steering | Manual Steering System 27.9-30.4(Variable); 380 mm Dia |
| Max Speed | 65 kmph |
Brakes
| Brakes | Front - Disc brakes; Rear - Drum brakes |
| Regenerative Brake | - |
| Suspension Front | Rigid Axle with Parabolic Leaf Spring |
| Suspension Rear | Live Axle with Semi-elliptical Leaf Spring |
Wheels and Tyres
| Tyres | 145 R12 LT 8PR RADIAL (Tubeless Type) |
Vehicle Dimensions (mm)
| Length | 3800 |
| Width | 1500 |
| Height | 1845 |
| Wheelbase | 2100 |
| Front Track | 1300 |
| Rear Track | 1320 |
| Ground Clearance | 160 |
| Min TCR | 4300 |
Weight (kg)
| GVW | 1835 |
| Payload | CLB:900 | High Deck:815 |
Battery
| Battery Chemistry | - |
| Battery Energy (kWh) | - |
| IP Rating | - |
| Certified Range | - |
| Slow Charging time | - |
| Fast Charging time | - |
Performance
| Gradability | 35 % (Power Mode) |
Seating & Warranty
| Seats | D+1 |
| Warranty | 3 year / 1 00 000 km (whichever is earlier) |
| Battery Warranty | - |
