Small Commercial Vehicles
-
-
-

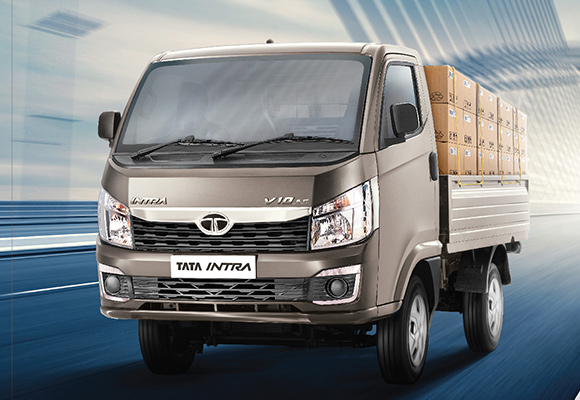

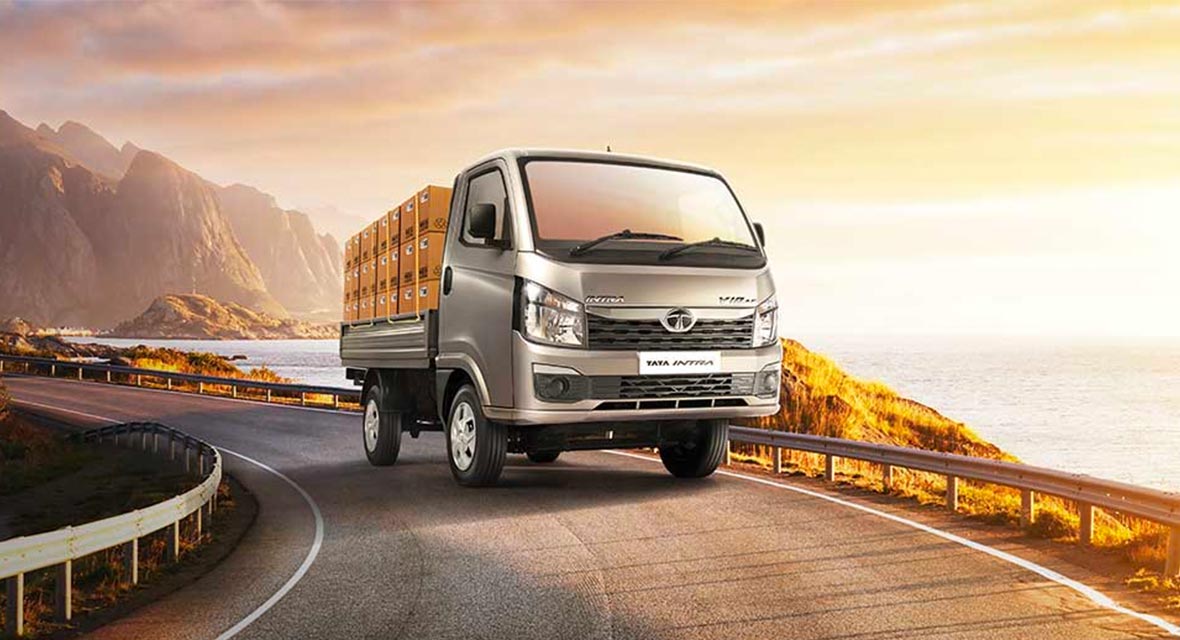

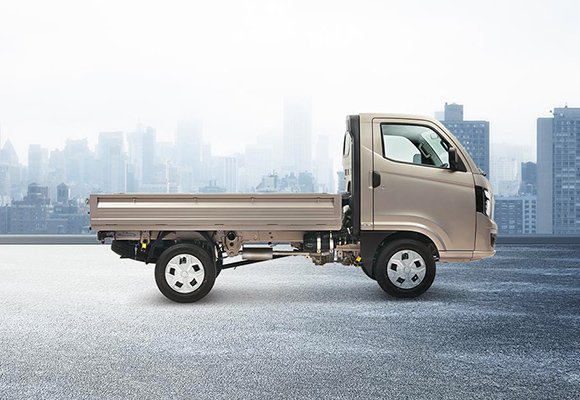

Tata Intra V10
TATA Intra is a range of pickups built on TML's new 'Premium Tough‘ design philosophy for commercial vehicles that combines rising levels of visual richness and sophistication with robustness and reliability. Intra V10 is for those customers who ply their vehicles in moderate load & moderate lead applications.
2120
GVW
35 L
Fuel Tank Capacity
798 cc
Engine
Earn More with Better Mileage and Better Pickup
- Big loading area: 2510 mm (8.2 ft) x 1600 mm (5.3 ft)
- 165R14 Radial Tyres (14-inch radial tyres)
- Suitable for moderately heavy and voluminous loads, and varied terrains
- Tata 2 cylinder 0.8L DI engine
- Power of 33kw @3750 rpm (44.2 HP)
- Torque of 110 Nm@1750 -2500 r/min
- High structural strength, more durability, and lower NVH levels

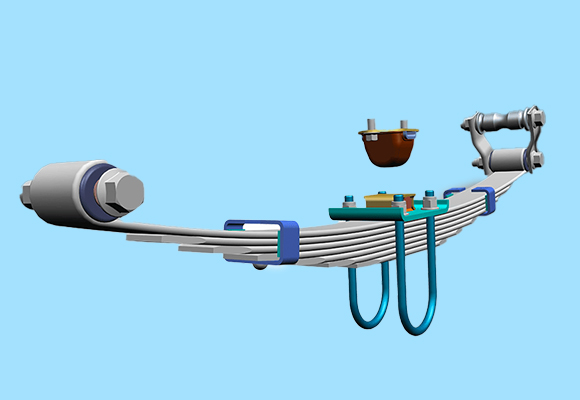

- Leaf spring suspension 2 leaves in front (parabolic), 7 leaves in rear (semielliptical leaf springs)
- High Ground clearance: 175mm for stability even in poor road conditions
- High Gradability: 32% for a smooth ride on steep ghat roads and flyovers
- Wider walk-through cabin: D+2 Seating arrangement
- Electric Power Assisted Steering
- High maneuverability: smaller turning circle radius of 4750 mm
- Highly suitable for easy city traffic or long distances
- Gear shift advisor

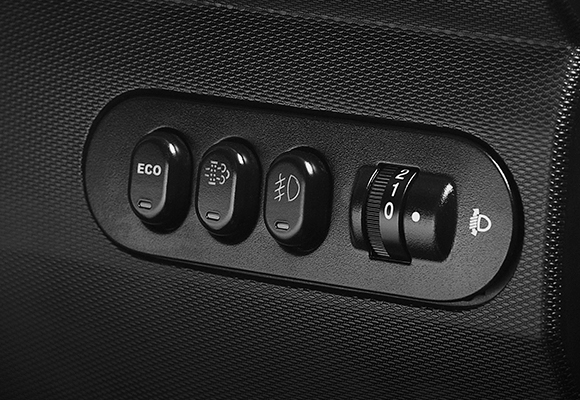

- Eco Switch
- Higher fuel efficiency: Two driving modes ECO and NORMAL
- Higher Savings: Low maintenance cost and longevity of aggregate life
- High turnaround time: More trips to ensure higher revenue
- Suitable for deployment in moderate load and lead applications
- Standard warranty of 3 year / 1 00 000 km (whichever is earlier)
- 24-hour toll-free helpline no. (1800 209 7979)
- Peace of mind: TATA Samarth & Sampoorna Seva package
Engine
| Type | 2 Cylinder, 0.8L DI Engine |
| Power | 33kw @3750 rpm (44.2 HP) |
| Torque | 110 Nm @ 1750-2500 r/min |
| Gradeability | 32% |
Clutch and Transmission
| Gear Box Type | GBS 65 Synchromesh 5F + 1R |
| Steering | Electric Power Steering |
| Max Speed | 80 km/h |
Brakes
| Brakes | Front - Disc brakes; Rear - Drum brakes |
| Suspension Front | Parabolic Leaf Springs - 2 leaves |
| Suspension Rear | Semi elliptical leaf springs - 7 leaves |
Wheels and Tyres
| Tyres | Tyre Size/Type165 R14 LT |
Vehicle Dimensions (mm)
| Length | 4282 |
| Width | 1639 |
| Height | 1921 |
| Wheelbase | 2250 |
| Ground Clearance | 175 |
| Min TCR | 4750 |
Weight (kg)
| GVW | 2120 |
| Payload | 1000 |
Performance
| Gradeability | 32% |
Seating & Warranty
| Seats | D+2 |
| Warranty | 3 year / 1 00 000 km (whichever is earlier) |
